Prijs: € 29,00 excl. BTW

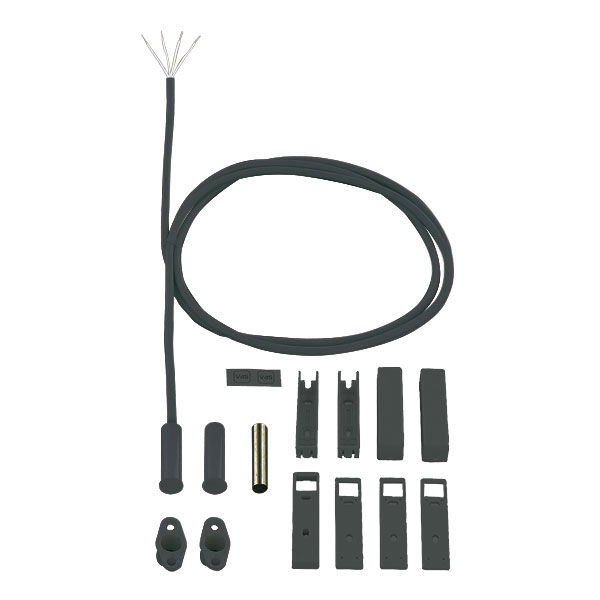

Opbouwmagneetcontact met 5 m kabel, kleur antraciet, enkelpolig (NO), zonder weerstanden, met sabotagelus. Maximale afstand magneet 17 mm (inbouw) / 22 mm (opbouw), max. belasting 40 VDC / 500 mA, bedrijfstemperatuur -40 °C tot +70 °C.
| Contact type | Enkel polig (NO) |
| Weerstanden | Geen |
| Sabotage lus | Ja |
| Max. afstand – inbouw magneetcontact | 17 mm |
| Max. afstand – opbouw magneetcontact | 22 mm |
| Max. belasting | 40 VDC |
| Max. schakelstroom | 500 mA |
| Max contact capaciteit | 6W of 6VA |
| Bedrijfstemperatuur | – 40 °C tot + 70 °C |
| Kabeldiameter | Ø 3,2 mm |
| Afmetingen contact | 8 x 8 x 40 mm |
| Afmetingen magneet | Ø 6 x 30 mm |
| Afmetingen plastic behuizing voor magneet | 13 x 12 x 54 mm |
| Afmetingen kabel | 5 m (4 x 0,14 mm |
| IP classificatie | IP67 |
| Milieuklasse | III |
| Security Grade conform EN 50131 | Grade 2 |
| Gecertificeerd | ja |
| – |
