SKU: OS1.751031

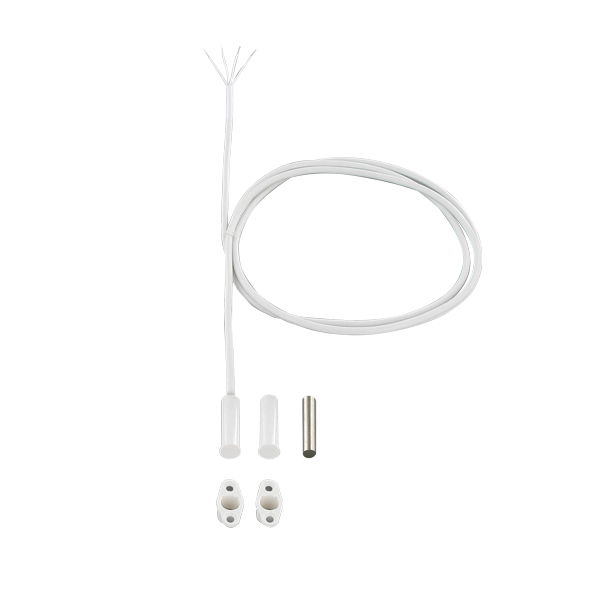

EMK-46S G3 – Inbouwmagneetcontact zonder weerstanden, hoog risico Grade 3

Prijs: € 26,00 excl. BTW

Inbouwmagneetcontact Grade 3, enkelpolig (NO), zonder weerstanden, met sabotagelus. Maximale afstand magneet 17 mm (± 4 mm), minimale schakelafstand 13 mm, max. belasting 40 VDC / 500 mA, bedrijfstemperatuur -40 °C tot +70 °C.

Specificaties

Contact type Enkel polig (NO)
Weerstanden Geen
Min. schakelafstand 13 mm
Max. afstand magneet 17 mm (+/- 4 mm)
Sabotage lus Ja
Max. belasting 40 VDC
Max. schakelstroom 500 mA
Max contact capaciteit 6W of 6VA
Bedrijfstemperatuur – 40 °C tot + 70 °C
Kabeldiameter Ø 3,2 mm
Afmetingen contact Ø 8 x 32 mm
Afmetingen magneet Ø 6 x 30 mm
Afmetingen plastic behuizing voor magneet Ø 8 x 31 mm
Afmetingen kabel 2 m (4 x 0,14 mm
Beschermingsklasse VdS – milieuklasse IV, IP 67
Security Grade conform EN 50131 Grade 3
Gecertificeerd ja

Eigenschappen

–
