SKU: OS1.103903

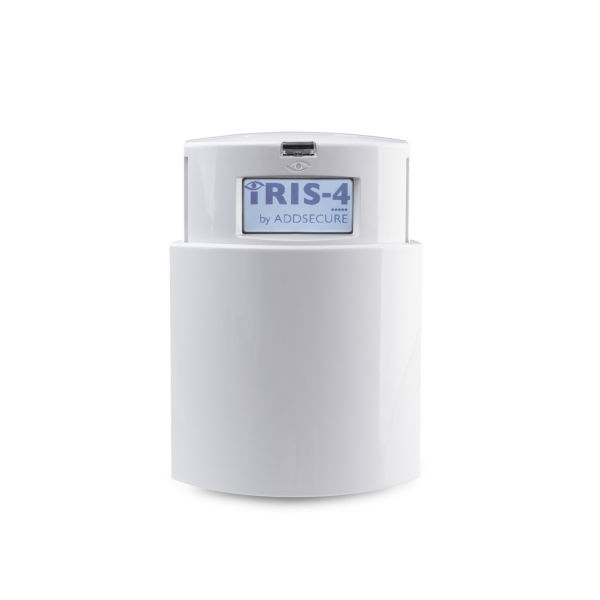

IRIS-4 240 dual path IP+4G module, touchscreen, brandvertragende behuizing, Grade 3

Prijs:  734,00 excl.BTW

De IRIS-4 240 is voor residentieel, klein en middelgroot commercieel gebruik en verbindt met elke alarmcentrale. De module heeft een touchscreen en beschikt over Ethernet en 4G (met terugval naar 3G en 2G) waarmee ATS-SP6/DP4 doormelding mogelijk is en is Grade 3 gecertificeerd. De IRIS-4 240 is gebouwd in een brandvertragende en sabotagebeveiligde ABS behuizing. Deze kan op de RS485 databus van de Honeywell Galaxy centrale worden aangesloten en kan direct vanuit de centrale of via Galaxy Remote Servicing Suite-software worden geprogrammeerd, zonder aparte programmeersoftware. Er kan worden doorgemeld naar een meldkamer en up- en downloading via Galaxy Remote Servicing Suite-software, maar is niet geschikt voor het gebruik van de Galaxy GX Remote Control app. Via dial capture kan elke alarmcentrale van PSTN omgezet worden naar doormelding via IP/4G. Levering: IRIS-4 240 – dual path module antenne (2,5m)

Specificaties

Voeding 9 V tot 28 V DC
Stand-by verbruik 140 mA @ 12V DC
Max. verbruik 1A @ 12V DC
Aanbevolen voeding 12 V DC 1A 12 Watt
4G LTE netwerk 800 / 900 / 1800 / 2100 / 2600 MHz
3G netwerk 900 / 2100 MHz
2G netwerk 900 / 1800 MHz
Simkaart Standaard / Mini
Aansluiting 1x RJ-45
Communicatie snelheid 10Base-T / 100Base-T
Alarm protocol SIA, Contact ID & Fast format (Scancom)
Dial capture SIA, Contact ID, Fast format (Scancom)
Poorten 10001, 51292 & 53165 (TCP)
Antenne aansluiting SMA
Antenne kabellengte 2,5 m
Touchscreen ja
Sabotage dial capture, deksel en muur, RS232, ingangen
Ingangen 4 (NO/NC/bewaakt 4k7/15k)
Max. ingangvoltage 24V DC
Relaisuitgangen 3
Max. relaisbelasting 24 V DC / 100mA DC
Serieel RS485 / 2x RS232 / TTL
RS485 protocol Honeywell Galaxy
RS232 (1) protocol Normal / Full (DCE) / Full (DTE) / Espa
SMS ja
Bedrijfstemperatuur -10…+55 °C
Maximale luchtvochtigheid 0 to 95%
Afmetingen 190 x 130 x 40 mm
Gewicht 550 g
Milieuklasse II
Security Grade conform EN 50131 Grade 3
Gecertificeerd ja
Veiligheidsklasse conform de EN 50131 / EN 50136 ATS-SP6/DP4

Eigenschappen

touchscreen brandvertragende ABS behuizing dual path module (IP/4G) constante controle van 4G netwerk (background polling) ingebouwde 4G netwerk scan 4 ingangen, 3 relaisuitgangen SMS notificaties aansluiting op de RS485 bus van de Galaxy volledig programmeerbaar vanuit Galaxy menu’s up- en dowloading via RSS dial capture (omzetten van PSTN naar IP/4G) voldoet aan EN50131 Grade 3
