SKU: OS1.103913

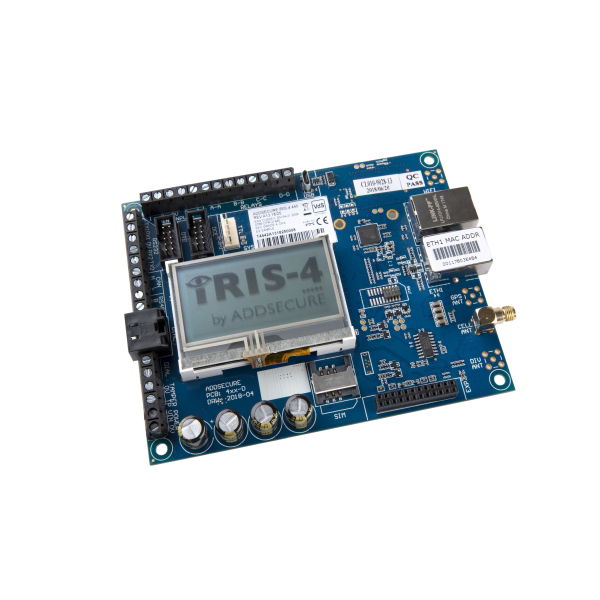

IRIS-4 400G single path 4G module, touchscreen, Grade 4 & EN54-21 CPR

Prijs:  482,00 excl.BTW

De IRIS-4 400G is voor groot commercieel gebruik en hoge beveiliging geschikt voor plaatsing in bestaande behuizingen en verbindt met elke alarmcentrale. De module heeft een touchscreen en beschikt over 4G (met terugval naar 3G en 2G) waarmee ATS-SP6 doormelding mogelijk is en heeft Grade 4 en EN54-21 CPR certificering. De IRIS-4 400G is een losse printplaat en kan in de centrale behuizing rechtstreeks aangesloten worden op de RS485 databus van de Honeywell Galaxy centrale worden aangesloten. Deze kan direct vanuit de centrale of via Galaxy Remote Servicing Suite-software worden geprogrammeerd, zonder aparte programmeersoftware. Er kan worden doorgemeld naar een meldkamer en up- en downloading via Galaxy Remote Servicing Suite-software, maar is niet geschikt voor het gebruik van de Galaxy GX Remote Control app. Via dial capture kan elke alarmcentrale van PSTN omgezet worden naar doormelding via 4G. Er zijn 12 extra ingangen beschikbaar via EXT-1 ingangenmodule. Doordat de IRIS-4 400G ook EN54-21 CPR gecertificeerd is kan deze in gekeurde brandmeldinstallaties worden toegepast. Tevens beschikt de module over een RS232 aansluiting met ESPA en Notifier protocol. Voor informatie over de IRIS-4 4G-Serie zie dit FAQ artikel Levering: IRIS-4 400G – single path module antenne (2,5m)

Specificaties

Voeding 9 V tot 28 V DC
Stand-by verbruik 151 mA @ 12V DC
Max. verbruik 1A @ 12V DC
Aanbevolen voeding 12 V DC 1A 12 Watt
4G LTE netwerk 800 / 900 / 1800 / 2100 / 2600 MHz
3G netwerk 900 / 2100 MHz
2G netwerk 900 / 1800 MHz
Simkaart Standaard / Mini
Alarm protocol SIA, Contact ID & Fast format (Scancom)
Dial capture SIA, Contact ID, Fast format (Scancom),
Poorten 10001, 51292 & 53165 (TCP)
Antenne aansluiting SMA
Antenne kabellengte 2,5 m
Touchscreen ja
Ingangen 4 (NO/NC/bewaakt 4k7/15k)
Ingangen uitbreidbaar ja, d.m.v. EXT-1 12 extra ingangen
Max. ingangvoltage 24V DC
Relaisuitgangen 4
Max. relaisbelasting 24 V DC / 100mA DC
Serieel RS485 / 2x RS232 / TTL
RS485 protocol Honeywell Galaxy
RS232 (1) protocol Normal / Full (DCE) / Full (DTE) / Espa
RS232 (2) protocol Normal / DSC SN4441 / HHL / HHL Plus
SMS ja
Bedrijfstemperatuur -10…+55 °C
Maximale luchtvochtigheid 0 to 95%
Afmetingen 150 x 110 mm
Gewicht 300 g
Milieuklasse II
Security Grade conform EN 50131 Grade 4
Gecertificeerd ja
Veiligheidsklasse conform de EN 50131 / EN 50136 ATS-SP6
Transmissie type conform EN54-21 CPR Type 1

Eigenschappen

touchscreen single path module (4G) constante controle van 4G netwerk (background polling) ingebouwde 4G netwerk scan 4 ingangen, 4 relaisuitgangen 12 extra ingangen met EXT-1 ingangenmodule RS232 poort met ESPA en Notifier protocol SMS notificaties aansluiting op de RS485 bus van de Galaxy volledig programmeerbaar vanuit Galaxy menu’s up- en dowloading via RSS dial capture (omzetten van PSTN naar 4G) voldoet aan EN50131 Grade 4 en EN54-21 CPR
