Prijs: € 253,00 excl.BTW

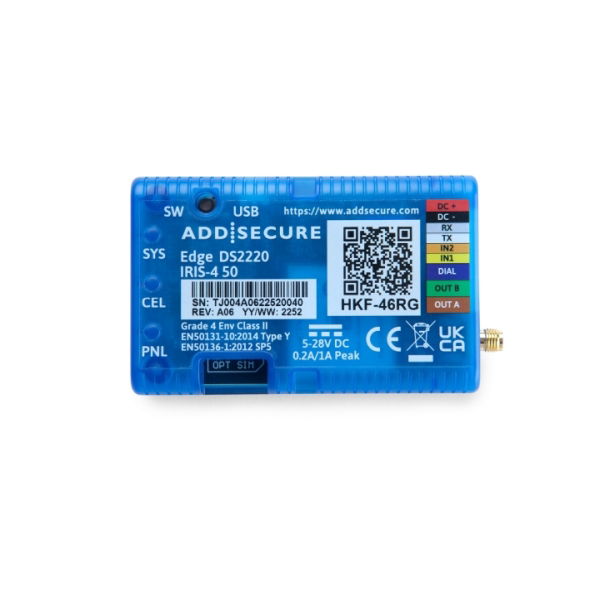

De IRIS-4 50 is de ideale oplossing voor oudere (alarm)systemen waarbij doormelding via PSTN, ISDN, 2G en 3G modules niet meer volstaat. De module verbindt via de dial capture poort met bijna elke alarmcentrale of technische installatie en beschikt over 4G (met terugval naar 3G en 2G) waarmee ATS-SP5 doormelding mogelijk is en is Grade 3 gecertificeerd. De IRIS-4 50 is gebouwd in een ABS behuizing met de grootte van een creditcard, waardoor deze eenvoudig in de behuizing van de installatie geplaatst kan worden. Het is mogelijk om een eigen simkaart te plaatsen óf gebruik te maken van de geïntegreerde eSIM. De geïntegreerde eSIM kan op verschillende netwerken wereldwijd roamen en maakt beveiligde verbinding via een eigen APN. De module kan bij ingebruikname zelf 24/7/365 geactiveerd worden via de AddSecure Customer Portal en de maandelijkse abonnementskosten zullen dan rechtstreeks gefactureerd worden. Doordat de IRIS-4 50 ook EN54-21 CPR gecertificeerd is kan deze in gekeurde brandmeldinstallaties worden toegepast. Levering: IRIS-4 50 – single path module aansluitkabel antenne (2,5m) kabelbinder zelfklevend klittenband
Voeding | 5 V tot 28 V DC |
Stand-by verbruik | 80 mA @ 12V DC, 40 mA @ 24V DC |
Max. verbruik | 1A @ 12V DC |
Aanbevolen voeding | 12 V DC 1A 12 Watt * |
4G LTE netwerk | 700 / 800 / 900 / 1800 / 2100 / 2600 MHz |
3G netwerk | 900 / 1800 / 2100 MHz |
2G netwerk | 900 / 1800 MHz |
Simkaart | mini / eSIM (geïntegreerd) |
Alarm protocol | SIA, Contact ID & Fast format (Scancom) |
Dial capture | SIA, Contact ID, Fast format (Scancom) * |
Poorten | 10001, 51292 & 53165 (TCP) |
Antenne aansluiting | SMA |
Antenne kabellengte | 2,5 m |
Sabotage | dial capture, RS232, ingangen |
Ingangen | 2 (NO/NC/bewaakt 4k7/15k) * |
Max. ingangvoltage | 24V DC |
Relaisuitgangen | 2 * |
Max. relaisbelasting | 24 V DC / 100mA DC |
Serieel | 1x RS232 * |
RS232 (1) protocol | Normal / Espa |
SMS | ja |
Bedrijfstemperatuur | -10…+55 °C |
Maximale luchtvochtigheid | 0 to 95% |
Afmetingen | 85 x 55 x 15 mm |
Gewicht | 85 g |
Milieuklasse | II |
Security Grade conform EN 50131 | Grade 3 |
Gecertificeerd | ja |
Veiligheidsklasse conform de EN 50131 / EN 50136 | ATS-SP5 |
Transmissie type conform EN54-21 CPR | Type 1 |
single path module (4G) constante controle van 4G netwerk (background polling) ingebouwde 4G netwerk scan 2 ingangen, 2 relaisuitgangen ledindicatie SMS notificaties dial capture (omzetten van PSTN naar 4G) voldoet aan EN50131 Grade 3 en EN54-21 CPR |
