SKU: OS1.103907

IRIS-4 620 single path IP integratie module, Grade 4 & EN54-21 CPR – 10% korting

Prijs:  342,00 excl.BTW

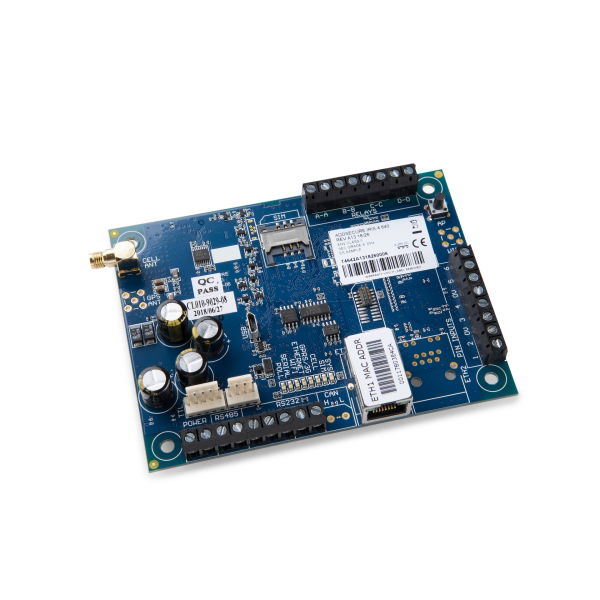

De IRIS-4 620 is voor klein, middelgroot en groot commercieel gebruik en hoge beveiliging voor integratie met paneelfabrikanten, zoals Honeywell Galaxy alarmsystemen. De module beschikt over Ethernet waarmee ATS-SP6 doormelding mogelijk is en is Grade 4 en EN54-21 CPR gecertificeerd. De IRIS-4 620 is een losse printplaat en kan in de centrale behuizing rechtstreeks aangesloten worden op de RS485 databus van de Honeywell Galaxy centrale. Deze kan direct worden geprogrammeerd vanuit de centrale of via Galaxy Remote Servicing Suite-software zonder aparte programmeersoftware. Er kan worden doorgemeld naar een meldkamer en up- en downloading via Galaxy Remote Servicing Suite-software, maar is niet geschikt voor het gebruik van de Galaxy GX Remote Control app. Doordat de IRIS-4 620 ook EN54-21 CPR gecertificeerd is kan deze in gekeurde brandmeldinstallaties worden toegepast. Tevens beschikt de module over een RS232 aansluiting met ESPA en Notifier protocol. Levering: IRIS-4 620 – single path module

Specificaties

Voeding 9 V tot 28 V DC
Stand-by verbruik 101 mA @ 12V DC
Max. verbruik 1A @ 12V DC
Aanbevolen voeding 12 V DC 1A 12 Watt
Aansluiting 2x RJ-45 (zie Osec Review)
Communicatie snelheid 10Base-T / 100Base-T
Alarm protocol SIA, Contact ID & Fast format (Scancom)
Poorten 10001, 51292 & 53165 (TCP)
Ingangen 6 (NO/NC/bewaakt 4k7/15k)
Max. ingangvoltage 24V DC
Relaisuitgangen 4
Max. relaisbelasting 24 V DC / 100mA DC
Serieel RS485 / 1x RS232 / TTL
RS485 protocol Honeywell Galaxy
RS232 (1) protocol Normal / Full (DCE) / Full (DTE) / Espa
Bedrijfstemperatuur -10…+55 °C
Maximale luchtvochtigheid 0 to 95%
Afmetingen 120 x 90 mm
Gewicht 60 g
Milieuklasse II
Voldoet aan EN50131 Grade 4 en EN54-21 CPR
Veiligheidsklasse conform de EN 50131 / EN 50136 ATS-SP6
Transmissie type conform EN54-21 CPR Type 1

Eigenschappen

single path module (IP) 6 ingangen, 4 relaisuitgangen RS232 poort met ESPA en Notifier protocol LED statusindicatie aansluiting op de RS485 bus van de Galaxy volledig programmeerbaar vanuit Galaxy menu’s up- en dowloading via RSS voldoet aan EN50131 Grade 4 en EN54-21 CPR
