SKU: OS1.103908

IRIS-4 640 dual path IP+4G integratie module, Grade 4 & EN54-21 CPR – 10% korting

Prijs:  622,80 excl.BTW

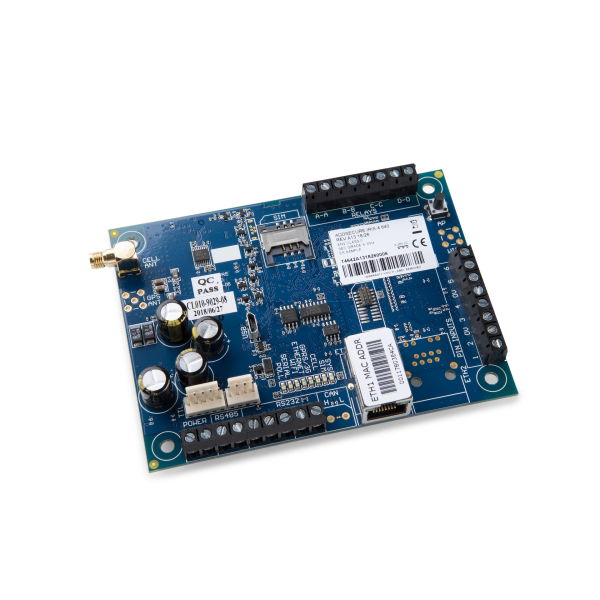

De IRIS-4 640 is voor klein, middelgroot en groot commercieel gebruik en hoge beveiliging voor integratie met paneelfabrikanten, zoals Honeywell Galaxy alarmsystemen. De module beschikt over Ethernet en 4G (met terugval naar 3G en 2G) waarmee ATS-SP6/DP4 doormelding mogelijk is en is Grade 4 en EN54-21 CPR gecertificeerd. De IRIS-4 640 is een losse printplaat en kan in de centrale behuizing rechtstreeks aangesloten worden op de RS485 databus van de Honeywell Galaxy centrale. Deze kan direct worden geprogrammeerd vanuit de centrale of via Galaxy Remote Servicing Suite-software zonder aparte programmeersoftware. Er kan worden doorgemeld naar een meldkamer en up- en downloading via Galaxy Remote Servicing Suite-software, maar is niet geschikt voor het gebruik van de Galaxy GX Remote Control app. Doordat de IRIS-4 640 ook EN54-21 CPR gecertificeerd is kan deze in gekeurde brandmeldinstallaties worden toegepast. Tevens beschikt de module over een RS232 aansluiting met ESPA en Notifier protocol. Levering: IRIS-4 640 – dual path module antenne (2,5m)

Specificaties

Voeding 9 V tot 28 V DC
Stand-by verbruik 109 mA @ 12V DC
Max. verbruik 1A @ 12V DC
Aanbevolen voeding 12 V DC 1A 12 Watt
4G LTE netwerk 800 / 900 / 1800 / 2100 / 2600 MHz
3G netwerk 900 / 2100 MHz
2G netwerk 900 / 1800 MHz
Simkaart Standaard / Mini
Aansluiting 2x RJ-45 (zie Osec Review)
Communicatie snelheid 10Base-T / 100Base-T
Alarm protocol SIA, Contact ID & Fast format (Scancom)
Poorten 10001, 51292 & 53165 (TCP)
Antenne aansluiting SMA
Antenne kabellengte 2,5 m
Ingangen 6 (NO/NC/bewaakt 4k7/15k)
Max. ingangvoltage 24V DC
Relaisuitgangen 4
Max. relaisbelasting 24 V DC / 100mA DC
Serieel RS485 / 1x RS232 / TTL
RS485 protocol Honeywell Galaxy
RS232 (1) protocol Normal / Full (DCE) / Full (DTE) / Espa
SMS ja
Bedrijfstemperatuur -10…+55 °C
Maximale luchtvochtigheid 0 to 95%
Afmetingen 120 x 90 mm
Gewicht 60 g
Milieuklasse II
Voldoet aan EN50131 Grade 4 en EN54-21 CPR
Veiligheidsklasse conform de EN 50131 / EN 50136 ATS-SP6/DP4
Transmissie type conform EN54-21 CPR Type 1 en Type 2

Eigenschappen

dual path module (IP/4G) constante controle van 4G netwerk (background polling) ingebouwde 4G netwerk scan 6 ingangen, 4 relaisuitgangen RS232 poort met ESPA en Notifier protocol SMS notificaties LED statusindicatie aansluiting op de RS485 bus van de Galaxy volledig programmeerbaar vanuit Galaxy menu’s up- en dowloading via RSS voldoet aan EN50131 Grade 4 en EN54-21 CPR
