Prijs: € 57,85 excl.BTW

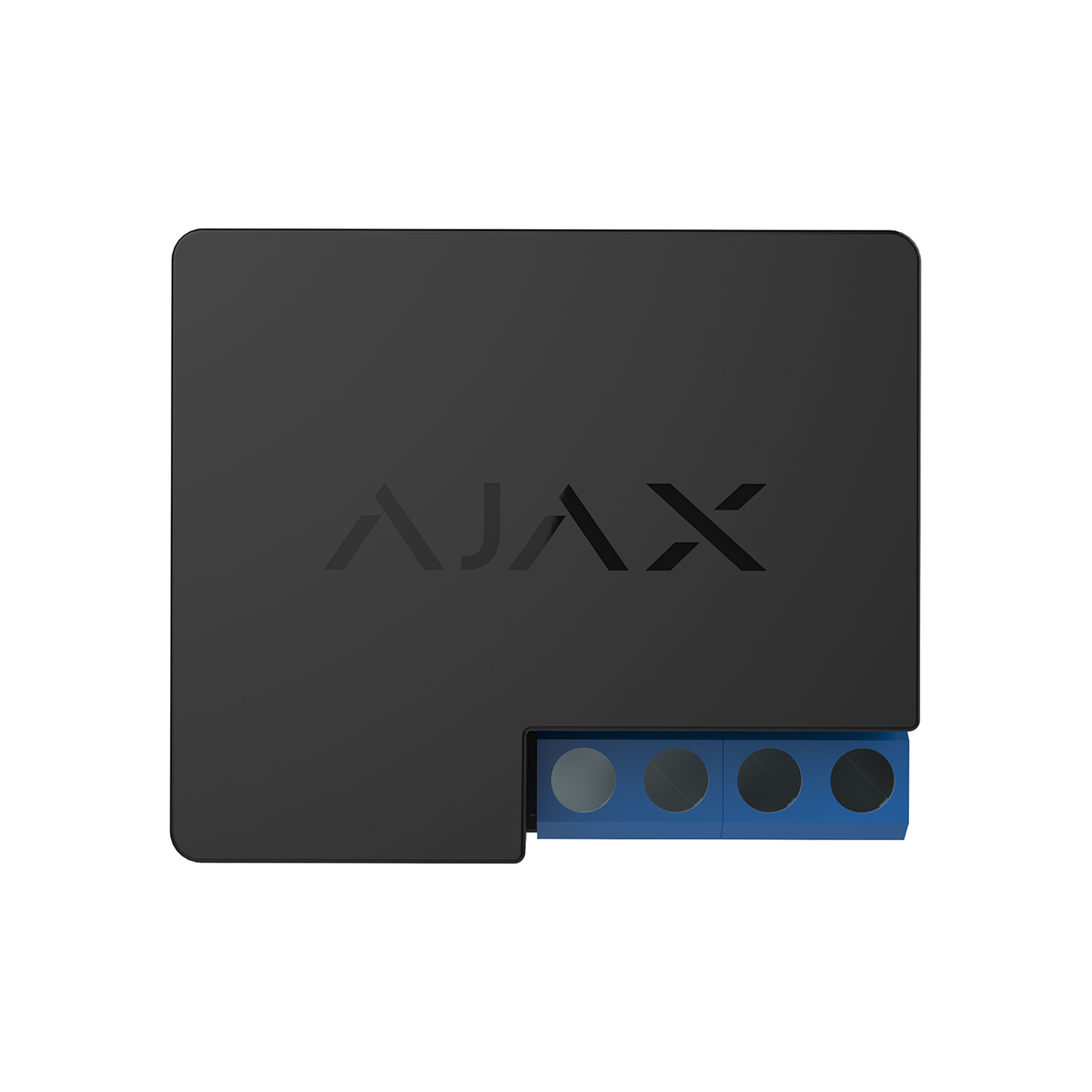

Het Relay draadloze potentiaalvrije relais wordt geplaatst in een inbouwdoos (of optioneel op een DIN-rail met een DIN Holder) en kan de voeding schakelen van het apparaat wat aangesloten is. De Relay wordt rechtstreeks op de 12–24 VDC aangesloten en sluit/opent het circuit op aansturing vanuit de Ajax app, via Button of via een scenario. Het relais is geschikt voor een vermogen van maximaal 2500 W bij 230 VAC. Levering: Relay Jeweller
Voeding | 7-24 VDC |
Standby verbruik | 1 W |
Max. belastingstroom | 5 A @ 24 VDC |
Uitgangsvermogen | tot 2500 W @ 230 VAC |
Spanningsbeveiliging | < 6,5 VDC en > 36,5 VDC |
Temperatuurbeveiliging | +65 °C omgeving |
Jeweller draadloos | Ja (868MHz) |
Jeweller max. bereik | 1000 m |
Wings draadloos | Nee |
Aantal openingen | 200.000 |
Bedrijfstemperatuur | -20…+64 °C |
Luchtvochtigheid | tot 85 % |
IP klasse | IP20 |
Afmetingen | 39 x 33 x 18 mm |
Gewicht | 25 g |
Jeweller radioprotocol versleutelde tweerichtingscommunicatie snelle verbinding en installatie d.m.v. QR code NC of NO potentiaalvrij maak/breek of puls spanningsbeveiliging temperatuurbeveiliging beschikbaar in zwart |
