SKU: OS1.890022

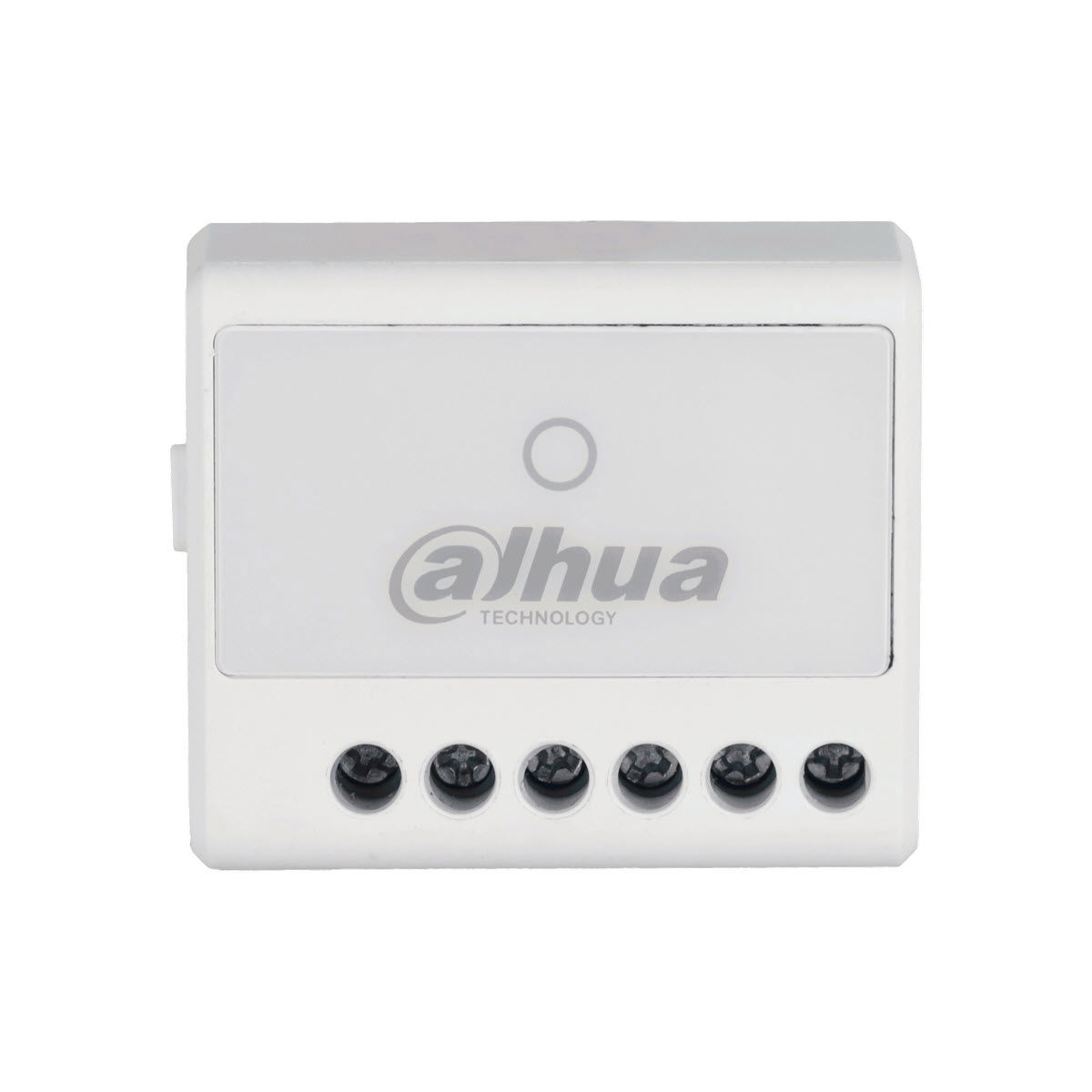

Dahua ARM7011-W2(868) AirShield Draadloze 7-24 VDC relais inbouw – 10% korting

 41,00  36,90

Dahua Wireless Relay Frequency hopping en two-way communicaton technologie zorgen ervoor dat de communicatie stabiel is. Ondersteunt storingsdetectie en communicatiecodering. Ondersteunt cloud update en herstelt automatisch wanneer cloud update mislukt. Bescherming tegen oververhitting. Spanningsdetectie. 1 kanaal externe sabotage-ingang.

Specificaties

Poort Alarminvoer 1 voor sabotage, NO/NC
Relaisuitgang 1, NO/NC (0–36 VDC, Max 5A)
Functie Indicatorlampje 1 voor meerdere statussen (koppeling, communicatie)
Knop 1
Technisch Testmodus Ja
Draadloos Frequentieband 868,0 MHz–868,6 MHz
Communicatiemechanisme Twee-richtingen
Communicatieafstand 1200 m (3937.01 ft) in open gebieden
Encryptiemodus AES128
Frequentieverspringing Ja
Algemeen Voedingsbron 7–24 VDC
Bedrijfstemperatuur –10 °C tot +55 °C (+14 °F tot +131 °F) (binnen)
Bedrijfsvochtigheid 10%–90% (RH)
Productafmetingen 39 mm × 33 mm × 19 mm (1.54″ × 1.30″ × 0.75″)
Netto gewicht 45 g (0.10 lb)
Bruto gewicht 60 g (0.13 lb)
Installatie Wandmontage
Behuizingsmateriaal PC + ABS
Certificeringen CE

Eigenschappen

Frequentie hopping en tweewegcommunicatietechnologie zorgen voor stabiele communicatie. Ondersteunt verstoringsdetectie en communicatieversleuteling. Ondersteunt cloud-updates en herstelt automatisch bij een mislukte cloud-update. Bescherming tegen oververhitting. Spanningdetectie. 1 kanaal voor externe sabotage-invoer.
Downloads

5808.pdf
2948.pdf
407.pdf
