€ 86,52 € 77,87

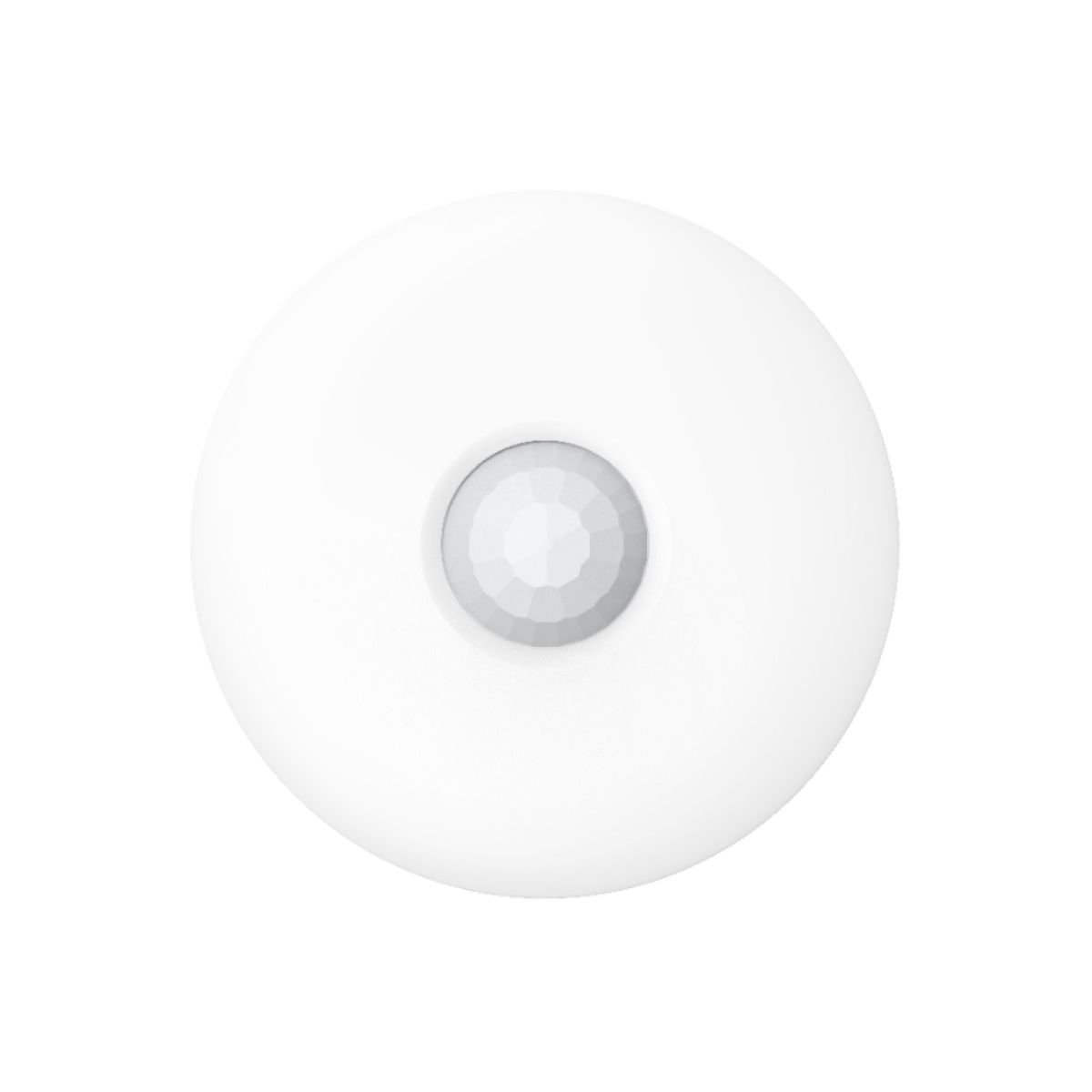

De DS-PDCL12DT-EG2 is een volledig bewaakte plafond DUAL detector en bewaakt het gebied binnen een straal van 360°x12m
Voeding | 9 … 16 VDC |
Max. stroomverbruik | 100 mA @ 12 VDC |
Detectiebereik | 360° x 12 m |
Radar | 24 GHz |
Alarm weerstanden | 1k / 2k2 / 4k7 / 5k6 / 6k8 |
Sabotage weerstanden | 1k / 2k2 / 4k7 / 5k6 |
Gevoeligheid | automatisch, laag |
Detectiesnelheid | 0.3 … 2 m / s |
Indicatieled | groen (pir), rood (radar), blauw (alarm) |
Digitale temperatuurcompensatie | ja |
Kruipzone | ja |
Direct licht filter | 6500 lux |
Sabotage | voorzijde |
Aanbevolen installatiehoogte | 2,4 … 4 m |
Bedrijfstemperatuur | -10…+55 °C |
Opslagtemperatuur | -20…+60 °C |
Maximale luchtvochtigheid | 10 tot 90% |
Afmetingen | Ø120 x 33,2 mm |
Gewicht | 138 g |
Security Grade conform EN 50131 | Grade 2 |
Gecertificeerd | ja |
detectiebereik 360°x12m digitale quad pyro sensor en 24GHz radar automatische gevoeligheid 9 tot 16 VDC voeding jumper instelbare ingebouwde weerstanden |
