€ 1.000,91 € 900,82

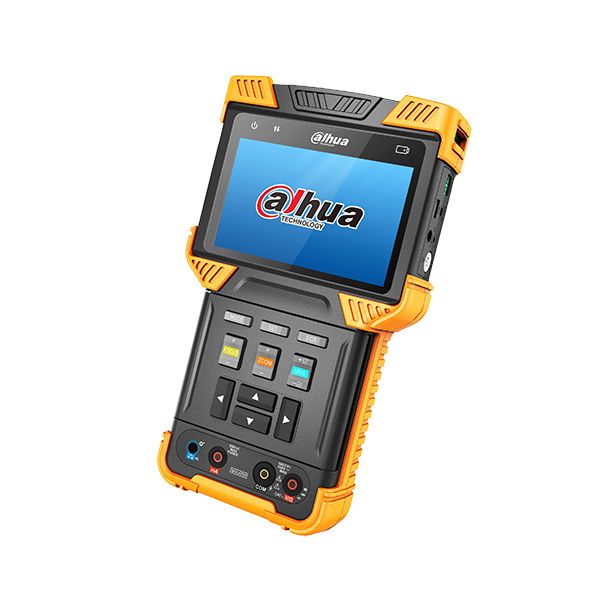

De Dahua PFM900-E is een multi-functionele camera test tool voor allerlei type camera’s. De tester kan gebruikt worden als testmonitor voor HD-CVI, IP en analoge camera’s. Daarnaast beschikt dit apparaat over verschillende functies om camera bekabeling en een netwerk te controleren. Ook de basis configuratie van Dahua IP camera’s en Dahua HD-CVI camera’s (via OSD) is mogelijk. Naast een camera test tool kan deze PFM900-E ook functioneren als multimeter.
Fysieke Poort | Netwerk Poort 2×10/100M/1G RJ45 |
Functie Poort 2xBNC (Video in/uit), 1xRS485, 1x Audio in, 1x Mini USB, 1x Reset, 1x DC12V uitgang | |
IP Camera Test | Protocol Onvif (Met PTZ bediening), RTSP, RTP |
Resolutie: 1MP, 1.3MP, 2MP, 3MP, 4MP, 5MP, 6MP, 8MP, 12MP | |
HDCVI & Analoge Testen | Formaat HD-CVI/AHD/TVI/CVBS |
Resolutie HD-CVI | |
Resolutie TVI | |
Resolutie ADH 2MP@25 fps, 4MP@25 fps | |
Resolutie CVBS NTSC, PAL | |
Analoge ingang 1x | |
PTZ Bediening | Protocol Meer dan 30 protocollen incl. Dahua, Pelco-D/P, Samsung, Panasonic, etc. |
Baud Rate 150, 300, 600, 1200, 2400, 1800, 9600, 19200bps | |
Detectie | TDR Detectie 0.1m nauwkeurigheid |
Netwerk Analyse Sniff, lijst Subnet, Ping, DHCP server | |
Opname Afspelen Ondersteund lokaal afspelen | |
Systeem Specificaties | Scherm 4.0″ TFT 800xRGBx480(WVGA) resolutie, 16.7M kleuren, achergrond verlicht (aanpasbaar) |
PoE Midspan 48V/15W output, AC100~230V 50~60Hz uitgang | |
Batterij Specifieke batterij, gebruiker vervangbaar, 7.4V lithium-ion polymer batterij, 22.2W | |
Voeding Uitgang PoE (802.3at)(Max. 25.5W), DC12V/2A | |
Tijd Oplaadtijd 3~4 uur, Werkingtijd 8 uur (zonder externe belasting) | |
Multimeter | Maximum voltage 600V |
Maximale stroom 2A | |
Overige | interne Opslag 8GB Flash |
LED Verlichting 2x35lm LED verlichting | |
Werkingtemperatuur -10°C~+55°C | |
Afmetingen 190 x 113 x 37mm |
– |
