SKU: OS1.962710

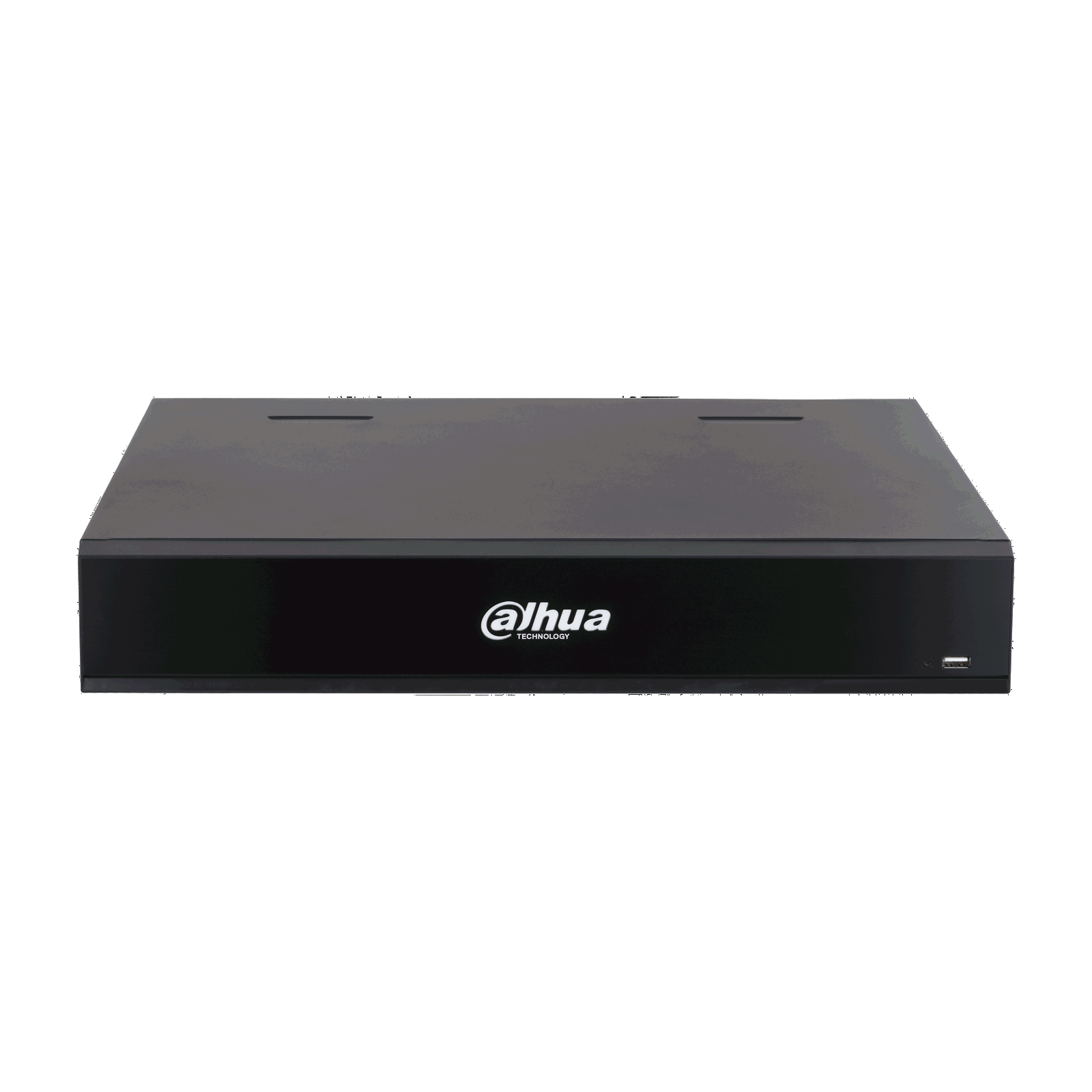

Dahua XVR7416L-4K-I3, Zonder Harddisk, 16 kanalen HD-CVI/TVI/AHD/Analoog en IP Camera’s – 10% korting

 2.221,00  1.998,90

De XVR7416L-4KL-X is een recorder uit de Dahua XVR pro serie. Elke kanaal is geschikt voor 16 HDCVI,AHD,TVI,CVBS of IP camera’s. Naast de vaste kanalen is er ook ruimte voor 16 extra IP camera’s. Deze XVR is uitermate geschikt voor zwaardere toepassingen. Zowel de inkomende als uitgaande bandbreedte kan tot 128Mbps. Daarnaast is het mogelijk om IVS detectie toe te passen op alle kanalen. Op deze XVR is een 2e VGA en HDMI beschikbaar voor een spot monitor

Specificaties

Video HDCVI Kanalen: 16
HDCVI: 8MP, 6MP, 5MP, 4MP, 1080p, 720p
HDTVI: 8MP, 5MP, 4MP, 3MP, 1080p, 720p
AHD: 8MP, 5MP, 4MP, 3MP, 1080p, 720p
CVBS: PAL/NTSC
IP camera: 16+16 kanalen, ieder kanaal tot 8MP
Configuratie voorbeeld IP Camera: 16x HD-CVI/TVI/AHD/Analoog + 16x IPC of totaal 32x IPC, Inkomende bandbreedte: Max 128Mbps
Display Interface: 2x HDMI, 1x VGA
Resolutie HDMI 1: 3840 x 2160
Resolutie HDMI 2/VGA: 1920 x 1080
Video-uitgangsmodus: HDMI 2 en VGA weergave is gelijk aan elkaar
CVBS uitgang: Ja
Opname Resolutie: 8MP, 6MP, 5M-N, 5MP, 4M-N, 4MP, 1080p, 720p, D1
Inkomende bandbreedte: 128Mbps
Uitgaande bandbreedte: 128Mbps
Opnamesnelheid Main stream: 4K@15fps, 6MP/ 5MP@25fps, 4K-N/4MP/3MP@25fps, 4M-N/1080P/720P/960H/D1/CIF@25fps)
Opnamesnelheid Sub stream: D1/CIF@25fps
Netwerk recorder Ethernet: 1x 10/100/1000Mbps
Opslag Inclusief HDD: Nee
Aantal poorten: 4x
Max aantal TB per poort: 16TB
eSATA: 1x
Interface recorder USB: 3x
Alarm in: 16x
Alarm uit: 6x
Audio in: 4x (gekoppeld aan kanaal 1 tm 4)
Audio uit: 1x
Twee-weg spreken: Ja
RS-232: ja
RS-485: 1x
Algemeen recorder Voeding: 100-240VAC
Verbruik: <30W (zonder HDD)
Werkomgeving: -10 tot +55°
Afmeting: 375.0 mm × 289.0 mm × 53.0 mm
Video detectie door Recorder Onderstaande functies zijn enkel beschikbaar i.c.m intelligentie vanuit de recorder
Perimeter Protection Gezichts herkenning AI-motion detection Video Metadata Gezichts detectie Max aantal kanalen 6x 6x 16x – 6x
Perimeter Protection Gezichts herkenning AI-motion detection Video Metadata Gezichts detectie
Max aantal kanalen 6x 6x 16x – 6x
Perimeter Protection Gezichts herkenning AI-motion detection Video Metadata Gezichts detectie
Max aantal kanalen 6x 6x 16x – 6x

Eigenschappen

H.265+/H.265 dual-stream video compressie Ondersteunt HDCVI,AHD,TVI,CVBS en IP video Geschikt voor 32 IP kanalen tot 12MP en max 128Mbps inkomende bandbreedte IoT & POS ondersteuning 2e HDMI/VGA uitgang voor spot monitor
