€ 774,00 € 696,60
Voor een betrouwbare en stabiele werking van een camerasysteem is goede netwerkapparatuur essentieel. Dahua heeft een ruim assortiment switches waarbij de focus vooral gericht is op videotoepassingen. Er zijn verschillende switches verkrijgbaar met een hoge doorvoersnelheid, krachtige PoE mogelijkheden en optimalisatie functies voor videotransmissie. Leverbaar in managed en unmanaged versies, zodat er voor elke video toepassing een geschikte switch beschikbaar is.
Hardware | Inclusief voedingsadapter Nee |
PoE Ja | |
Ethernet-poorten 6 | |
Optische poorten 4 | |
Snelheid Ethernet-poorten 10/100/1000 Mbps | |
Snelheid optische poorten 1000 Mbps | |
Omschrijving functies Port 1-6: 6 × RJ-45 10/100/1000 Mbps | |
Debuggen 1 × Consolepoort | |
Resetknop 1 | |
Voeding 53 VDC | |
Bedrijfstemperatuur –40 °C tot +75 °C (–40 °F tot +167 °F) | |
Bedrijfsvochtigheid 5%–95% (RV), niet-condenserend | |
Stroomverbruik Idle: ≤ 6 W | |
Prestaties | Layer L2 |
Type beheer Ja | |
MTBF 1168152.07 uur | |
Switchcapaciteit 56 Gbps | |
Packet Forwarding Rate 14.88 Mpps | |
Packet Buffer Size 4.1 Mbit | |
Jumbo Frame 10K Byte | |
Grootte MAC-tabel 8K | |
VLAN-nummer 4K | |
VLAN-interface 10 | |
Dynamic ARP 512 | |
Communicatiestandaard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad | |
Functies | PoE Protocol IEEE802.3af (PoE); IEEE802.3at (PoE+); Hi-PoE; IEEE802.3bt |
PoE Power Port 1-2: ≤90 W | |
PoE Power Consumption Beheer | |
PoE Pin Assignment 1, 2, 4, 5(V+), 3, 6, 7, 8(V-) | |
Long Distance PoE Transmission Ja | |
Spanning Tree Protocol STP, RSTP, ERPS | |
VLAN Functie Ja | |
Link Aggregatie Statische linkaggregatie; LACP | |
IEEE 802.3x Flow Control IEEE 802.3X-gebaseerde flow control (full-duplex) | |
Multicast IGMP Snooping Ja | |
DHCP Functie DHCP-client | |
Beveiliging | IEEE 802.1x Ja |
ACL Ja | |
ERPS Ja | |
Apparatuurbeheer | WEB (http en https) Ja |
Telnet Ja | |
CLI Ja | |
SNMP V1/V2C/V3 Ja | |
Algemeen | Statische Bescherming Luchtontlading: 8 kV |
Bescherming tegen Bliksem Gemeenschappelijke modus: 6 kV | |
Nettogewicht 1.25 kg (2.76 lb) | |
Brutogewicht 1.52 kg (3.35 lb) | |
Productafmetingen 125 mm × 53.5mm × 175.0 mm (4.92″ × 2.11″ × 6.89″) | |
Verpakkingsafmetingen 254 mm × 287 mm × 101 mm (10.00″ × 11.30″ × 3.98″)(L × B × H) | |
Certificeringen CE, FCC |

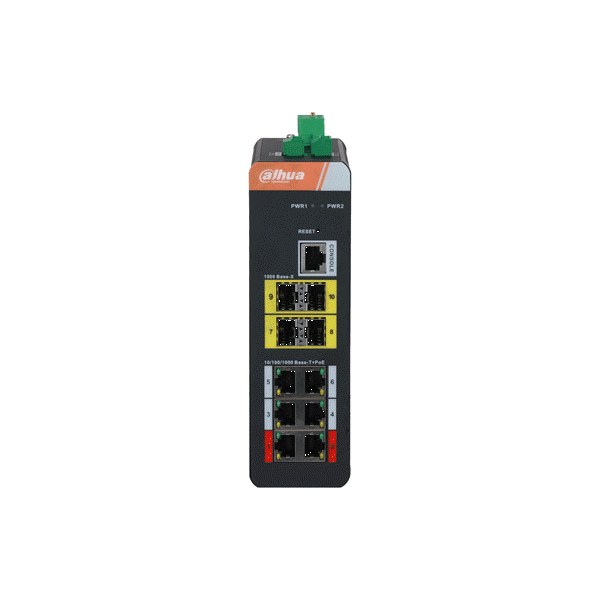

Layer 2 beheerde industriële PoE-switch Ondersteunt IEEE802.3af, IEEE802.3at, Hi-PoE and IEEE802.3bt Ondersteunt STP, RSTP, and ERPS. Dual power input voor power redundancy Ondersteunt Web, SNMP en CLI management IEEE802.1Q-based VLAN configuration. |
