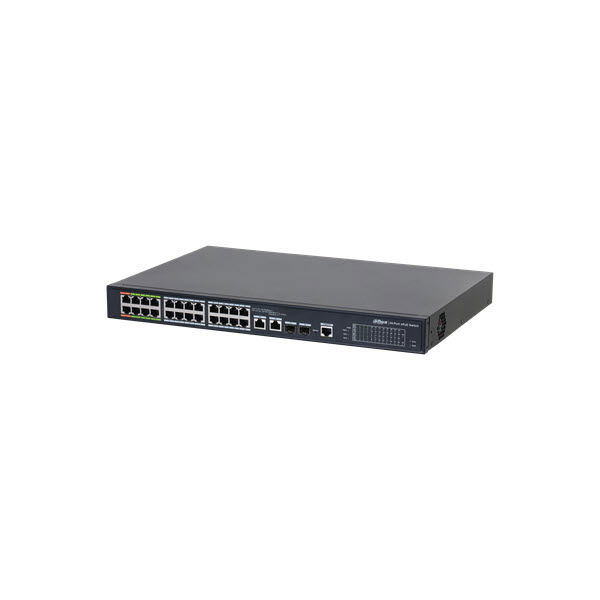

Dahua LR2226-24-ET-360-V2 layer-2 managed, 24x PoE Switch met 8 EPoE poorten (360W) – 10% korting

 604,00  543,60

Voor een betrouwbare en stabiele werking van een camerasysteem is goede netwerkapparatuur essentieel. Dahua heeft een ruim assortiment switches waarbij de focus vooral gericht is op videotoepassingen. Er zijn verschillende switches verkrijgbaar met een hoge doorvoersnelheid, krachtige PoE mogelijkheden en optimalisatie functies voor videotransmissie. Leverbaar in managed en unmanaged versies, zodat er voor elke video toepassing een geschikte switch beschikbaar is.

Specificaties

Technische specificatie Ethernet poort 24x 10/100 Base-T (PoE)
RS232 1 console port
PoE stroomverbruik Poort 1 en poort 2 ondersteunen Hi-PoE 60W
PoE Protocol IEEE802.3af, IEEE802.3at, Hi-PoE
Switching Capacity 8.8Gbps
Packet Forwarding Rate 6.55Mbps
Packet Buffer Memory 2.75Mb
Toepassingsvochtigheid 5% ~ 95%
Voeding AC100-240V, 50/60Hz, 6A
Bescherming tegen bliksem Common Mode 2KV
Werktemperatuur -10°C ~ 55°C
Afmetingen (LxBxH)
Algemeen System Username / password: admin/admin
PoE Budget Totaal≤240W
MAC Table 4K
NTP Support
DHCP Support DHCP client
VLAN 802.3z Standard VLAN – 31
Poort Aggregation Manual aggregation/LACP
Mirroring veel-op-één Port Mirroring
Flow Control Half-duplex based on back pressure type control; Full duplex based on PAUSE frame
Multicast IGMP Snooping v1/v2
Security Features Users management, SSH, HTTPS, SNMP v1/v2/ v3, ROMN, ACL, IP source guard, ARP inspection, 802.1x, loop protection
Spanning tree Support STP/RSTP/MSTP
LLDP Support
MAC Table Support MAC address table configuration
QoS Support QoS base on CoS/DPL/PCP/DEI
Network Management WEB(http protocol), serial, SNMP
Kabel (m) Bandbreedte (Mbps) PoE (W) Hi-PoE (W)
100 100 25.5 53
200 100 25.5 33
300 100 19 19
400 10 17 17
500 10 13 13
800 10 7 7
