€ 219,60 € 197,64

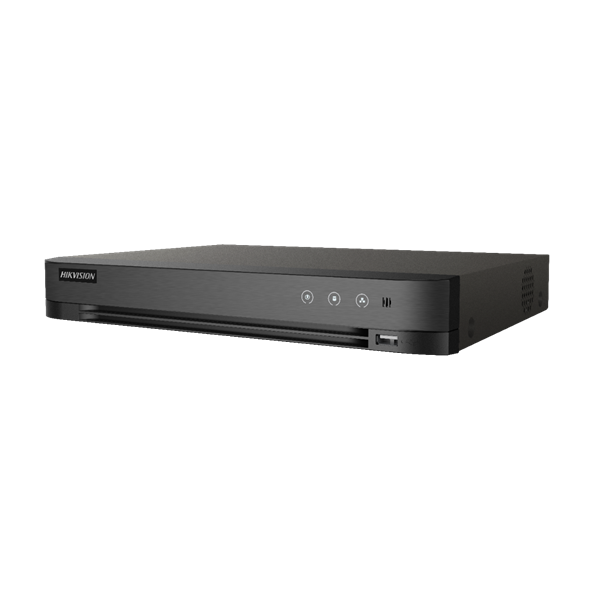

Turbo HD 4.0 recorders beschikken over de door Hikvision ontwikkelde HD-TVI technologie. Deze technologie maakt het mogelijk om hoge resolutie camera’s toe te passen op COAX bekabeling. Voordeel van de HD-TVI techniek is dat deze eenvoudig toe te passen is, ook op de infrastructuur van bestaande analoge camerasystemen. Dankzij deze technologie zit er weinig vertraging in het beeld en kunnen er afstanden tot wel 700 meter worden behaald. De Entry Level Turbo HD 4.0 recorder is het instapmodel HD-TVI recorder van Hikvision. De recorder ondersteunt H.265 en is geschikt voor resoluties tot 4MP Lite met een frame rate tot 15fps. Bij het toepassen van de Lite mode halveert de recorder de horizontale pixel lijnen waardoor het mogelijk is om 1080p met 25 frames per seconde en 4MP met 15 frames per seconde weer te geven. Deze serie recorders onderscheidt zich door de unieke AcuSense technologie. Dit is een geavanceerd algoritme dat in staat is voertuigen en personen te herkennen waardoor een zeer accurate detectie mogelijk is.
Video HDCVI HDTVI | Kanalen: 4 |
HDCVI: 5MP, 4MP, 1080p, 720p | |
Toelichting HDCVI: 5MP @20fps, 4 MP, 1080p, 720p@25 fps | |
HDTVI: 8MP, 5MP, 4MP, 3MP, 1080p, 720p | |
Toelichting HDTVI: 8 MP@ 15fps, 5 MP, 4 MP, 3 MP, 1080p@25 fps | |
AHD: 5MP, 4MP, 1080p, 720p | |
Toelichting AHD: 5 mp @20fps, 4 MP, 1080p, 720p@25 fps | |
CVBS: PAL/NTSC | |
IP camera: 4+2 kanalen, ieder kanaal tot 8MP | |
Configuratie voorbeeld IP Camera: 4x HDTVC/HDCVI/AHD/Analoog + 2x IPC | |
Of met Enhanced IP mode Aan | |
PoC: N.V.T. | |
Display | Interface: 1x HDMI, 1x VGA |
Resolutie HDMI 1: 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | |
Resolutie VGA 1: 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | |
Video-uitgangsmodus: HDMI 1 en VGA 1 zijn gelijk aan elkaar | |
CVBS uitgang: 1-Kanaal, BNC (1.0 Vp-p, 75 Ω), | |
resolutie | PAL: 704 × 576, NTSC: 704 × 480 |
Opname | Compressie: Smart H.265, H.265, Smart H.264, H.264 |
Resolutie: 8MP, 5MP, 4MP, 3MP, 1080p, 720p, D1 | |
Inkomende bandbreedte: 32Kbps tot 10Mbps | |
Gesynchroniseerd afspelen: 4 kanalen | |
Opnamesnelheid Main stream: When 1080p lite mode not enabled: For 4 MP stream access: 4 MP lite@15 fps, 1080p lite, 720p, WD1, 4CIF, VGA, CIF@25 fps For 3 MP stream access: 3 MP, 1080p, 720p, VGA, WD1, 4CIF, CIF@15 fps | |
For 1080p stream access | 1080p, 720p@15 fps, VGA, WD1, 4CIF, CIF@25 fps |
For 720p stream access | 720p, VGA, WD1, 4CIF, CIF@25 fps |
When 1080p Lite mode enabled | 4 MP lite, 3 MP@15 fps, 1080p lite, 720p lite, VGA, WD1, 4CIF, CIF@25 fps |
Netwerk recorder | Ethernet: 1x 10/100Mbps |
Opslag | Inclusief HDD: Nee |
Aantal poorten: 1x | |
Max aantal TB per poort: 10TB | |
Interface recorder | USB: 2x |
Audio in: 1x | |
Audio uit: 1x | |
Twee-weg spreken: Via Audio input | |
RS-232: Nee | |
RS-485: 1x | |
Algemeen recorder | Voeding: 12 VDC, 1.5 A |
Verbruik: <10W (zonder HDD) | |
Werkomgeving: -10 tot +55° | |
Afmeting: 315 × 242 × 45 mm | |
Video detectie door Recorder | Onderstaande functies zijn enkel beschikbaar i.c.m intelligentie vanuit de recorder |
Perimeter Protection Perimeter Protection Gezichts herkenning AI-motion detection Video Metadata Gezichts detectie Max aantal kanalen 4x | |
Max aantal kanalen | 4x |
Max aantal kanalen | 4x |
Hoge kwaliteit video over coax 4 kanalen HDCVI, AHD, TVI, CVBS en 2 extra IP kanalen Full-HD 25FPS opname voor alle kanalen Motion Detection 2.0 met object classificatie H.265 Pro geoptimaliseerde video compressie AcuSense Detectie technologie |
